5L-130plus suppended Biomass furnace with1300 000 Kcal for Heat Supplying
Production Information:
1. Multi biomass fuels for choice, energy saving and environment friendly.
2. Automatic feeding/ ash removal/ cyclone for choice.
3. Indirect hot air heating, no pollution.
4. Automatic temperature controlling, temperature difference:±1℃.
5. Adopt the suspended burning technology to burn fully and save combustion effectivelly to reduce exhast as emssion (Rice hull combustion :400kg/H)
6.heat up in 8-10 minutes from normal temperature to 110 in southest Asia and South central China
7. Long life time : the inside of the furnace adopts all
Our Key Parameters:
| Model | 5L-130 Plus |
| Combustion mode | Suspended burning |
| Total heat exchange area (m2) | 135.4 |
| Furnace volume(m3) | 9.02 |
| Grate volume(m3) | 1.74 |
| Thermal power(kj/h) | 5.447×106 |
| (%) Thermal efficiency | ≥80 |
| Air heater mode | 4－72－C Style |
| (kg/h) ash output | 25-75 |
| (℃) hot air temperature | 120 |
| (kW) Motor power of hot-air blower | 5.5 |
| Model of smoke blower | 4-72 3.2A |
| (kW) Total motor power | 15.65 |
| (m) Height of the funnel | Above the chimney tallest building 3m radius around 50m disance |
| (mm) Overall dimension(LxWxH) | 5730x6850x8530 |
| (T) Total weight | 20 |
| Rated heat | 130 |
| Heating mode | Indirect hot air heating, automatic temperature controlling |
| Feeding mode | feeding automatically(straw) |
| Applied fuel | rice hull, straw |
| (Kg/h) Rated fuel combustion | rice hull:150-450 |
| Qty and model of dryers | 5HCY-15H:6-10Sets |
| 5HCY-30:4-5Sets | |
| Safety device | Thermal-over relay, automatic constant temperature device, Hot air temperature sensor, overheating protection device, overload protection device, leakage protection device |
1. Thermal energy, husk consumption and exhausted ash production listed above are for reference only, actual data will differ from variety, moisture content and impurity rate.
2. Specification subject to change without notice.
Our Husk Operation process
Our Quality control
Q1: What's your working volts for the grain dryer and husk burner machines?
A: Our machines mainly work on with 380V 50HZ and 3 phases. If have other demands for the working volts, please let us know in advance. We will check and customize for you
Q2: What's your lead and delivery time?
A: Usually machines should be prepared well within 15-20 days, including Sundays when deposit has been confirmed. Delivery time should depend on customers’ demands for the delivery way.
Q3: How is your warranty?
A: Warranty period is 12 (Twelve) months from the startup on site.
Q4: How could I do if I meet some troubles on operation?
A:We will let our staffs contact with you to solve it on line. If necessary, we can send engineers and translator to your factory to train your tech staffs.

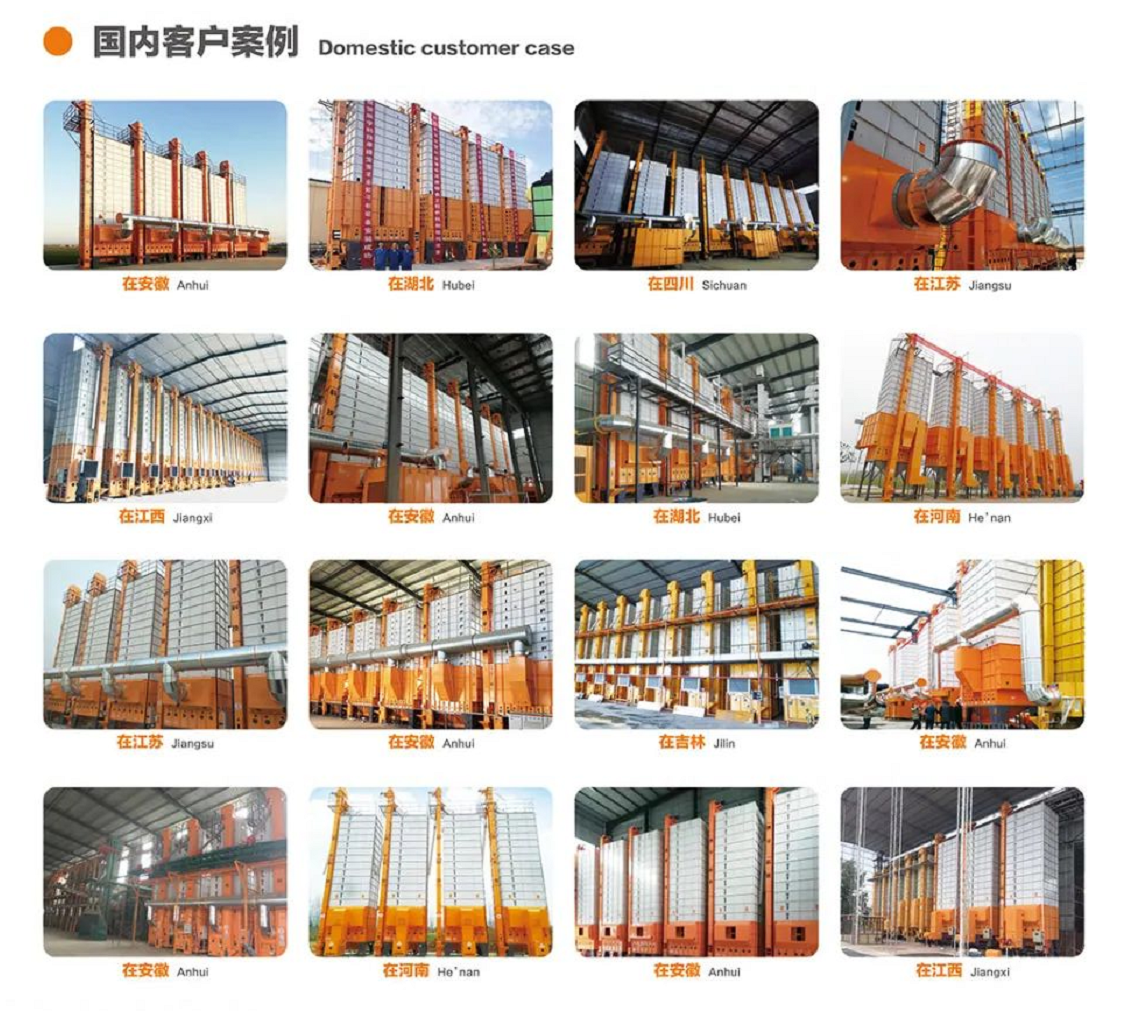

Our Customer Case
|
|
