5HCY-15H Paddy Dryer Machine Capacity 15ton Per Batch With On Line Moisture Control
Product Main Characteristics:
1, Using horizontal multi-slot dryer section, grain crisscrossed loop cycle, hot exchange and evaporative way of drying to make sure the drying is evenly and fully;
2, Prevent drying crack broken rice, we adopt constant drying speed control, drying rate and air temperature controlled by computer, without manual settings;
3, Prevent mildew of the grain, machine running under proper temperature ;
4, Prevent excessive drying adopting automatic, accurate and safe water monitoring devices, it can be shut down automatic;
5, Body of tower is low and compact, easy to be installed;
6, High moisture rice and wheat also can be dried, widely used for Corn, Wheat, Sesame, Rapeseed, Peanut, Melon seeds, Cotton seeds, Soybean, Mung bean and so on;
7, Safe, reliable, easy to be cleaned;
8, A variety of fuels available, economic, environmentally friendly;
9, Easy to maintain, convenient to use;
10, Excellent quality raw materials for drying tower body, more durable.
Parameters:
| Model (Cross type ) | 5H-12 (12T/batch) | ||
| Structure | Batch type circulating | ||
| Drying way | Indirect heating | ||
| Cyclic batch | 12 | ||
Loading capacity | paddy(kg) | 2300-12000 | |
| wheat(kg) | 2700-12000 | ||
| Total weight(kg) | 2800 | ||
| Diemension Body (L×W×H)mm | 2106×2080×7910 | ||
| Diemension (L×W×H)mm | 4314×2979×9030 | ||
Ventilation fan | Model | 4-72-6A | |
| rated air flow(m3/h) | 6677-13353 | ||
| Burner ( Optional) | Model | husk burner/gas burner/Diesel burner | |
| Ignition | manual | ||
| electricity | Voltage/frequence | three phase 380V single phase 220V/50hz | |
| kW motor power | 7.87 | ||
| function | loading time | paddy(min) | 55-65 |
| wheat(min) | 50-60 | ||
unloading time | paddy(min) | 55-65 | |
| wheat(min) | 50-60 | ||
| drying rate (%/h) | 0.5-1.2% | ||
| device | safety device | Full load buzzer,Thermal-over relay,Temperature Control Instrument, Hot air temperature sensor, Overload protection device, Leakage protection device | |
| standard device | Online moisture monitor, Conveying system, Unloading system, Drying system, Tempering system, Elevator, Exhaust fan in low noise, Automatic control system | ||

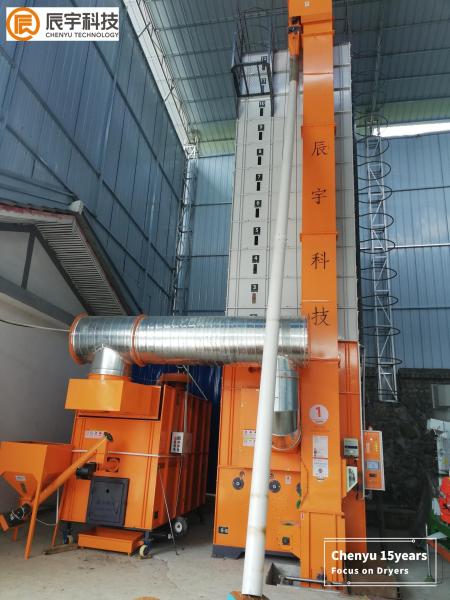

Low Temperature Grain Dryer Working Principle:
Put the grain in the dryer per batch, then the grain will be circulated orderly by the interaction of electric parts and structural parts. The hot air from the husk burner gets into the drying layer to pass through and heat the grain under the action of single electric fan. The air flows draw the moisture out of the grain, then the exhaust gas discharges out of the machine with the suction of the exhaust fan. When the moisture reaches to the preset data, the drying process is over and then machines stop working.
Classical Biomass Furnace Working Principle:
Put the fuels, such as rice hull, straw and anthracite into the furnace to burn, then to generate heat. The smoke gets into the heat exchanger and discharges outside after many cycles. At the same time the cold air is heat upt through the heat exchanger outside, then discharges out of the dryer. It can increase the thermal efficiency, save energy and reduce cost greatly.
