12 Tons/Batch With Power 7.8kw Paddy Dryer Machine With On Line Moisture Control
Product Main Characteristics:
Product Category: Grain Dryer
Brand: Chenyu
Model: 5H-12
Country of Origin: China
Features
* Adapt to high pressure auto injectignition that is automatically adjusting according to the set temperature.
* Mixing design of hot wind and cold wind, saving oil and quick dry.
* Auto internal cleaning design, decreasing the concern of fire.Keep the hot wind and cold wind ventilated all the time.
* Patent fan blower dust structure, making the dried crop clean and fresh.
* Patent fan flabellum, stable rotation, not easy to get dusted.
* Optional gravity discharge design. Power-free quick discharge, saving time and electricity.
* The only linear non-destructive moisture meter, which can measure many kinds of crops.
Parameters:
| Model (Cross type ) | 5H-12 (12T/batch) | ||
| Structure | Batch type circulating | ||
| Drying way | Indirect heating | ||
| Cyclic batch | 12 | ||
Loading capacity | paddy(kg) | 2300-12000 | |
| wheat(kg) | 2700-12000 | ||
| Total weight(kg) | 2800 | ||
| Diemension Body (L×W×H)mm | 2106×2080×7910 | ||
| Diemension (L×W×H)mm | 4314×2979×9030 | ||
Ventilation fan | Model | 4-72-6A | |
| rated air flow(m3/h) | 6677-13353 | ||
| Burner ( Optional) | Model | husk burner/gas burner/Diesel burner | |
| Ignition | manual | ||
| electricity | Voltage/frequence | three phase 380V single phase 220V/50hz | |
| kW motor power | 7.87 | ||
| function | loading time | paddy(min) | 55-65 |
| wheat(min) | 50-60 | ||
unloading time | paddy(min) | 55-65 | |
| wheat(min) | 50-60 | ||
| drying rate (%/h) | 0.5-1.2% | ||
| device | safety device | Full load buzzer,Thermal-over relay,Temperature Control Instrument, Hot air temperature sensor, Overload protection device, Leakage protection device | |
| standard device | Online moisture monitor, Conveying system, Unloading system, Drying system, Tempering system, Elevator, Exhaust fan in low noise, Automatic control system | ||
Low Temperature Grain Dryer Working Principle:
Put the grain in the dryer per batch, then the grain will be circulated orderly by the interaction of electric parts and structural parts. The hot air from the husk burner gets into the drying layer to pass through and heat the grain under the action of single electric fan. The air flows draw the moisture out of the grain, then the exhaust gas discharges out of the machine with the suction of the exhaust fan. When the moisture reaches to the preset data, the drying process is over and then machines stop working.

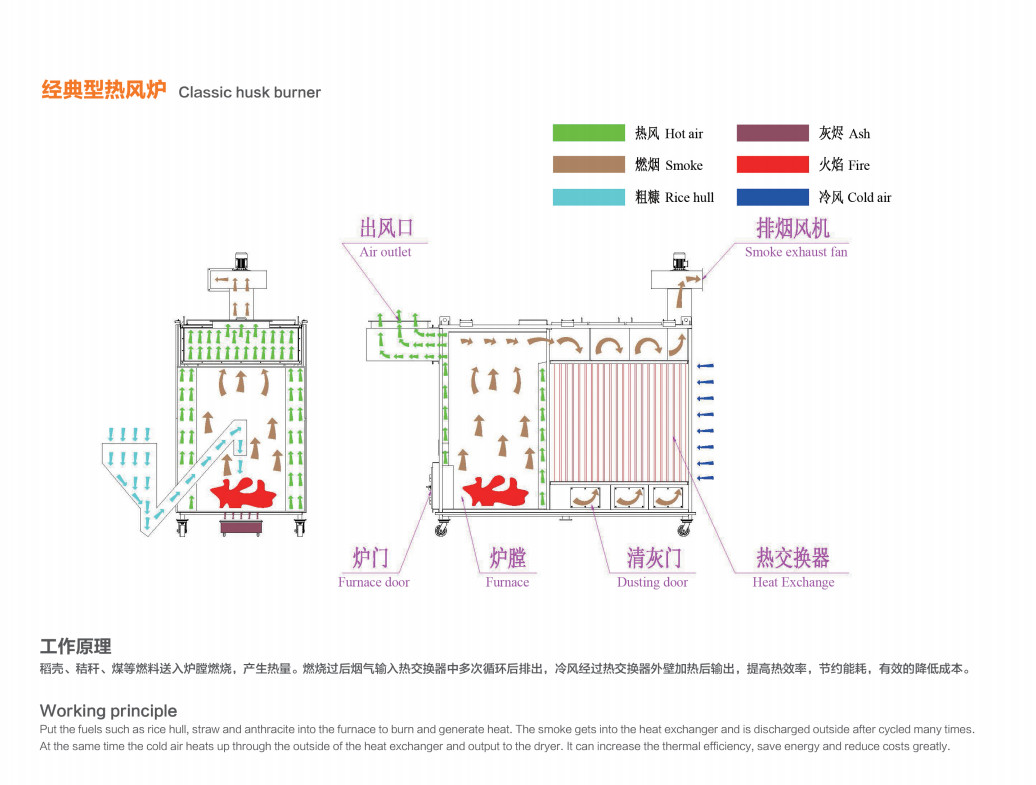

Classical Biomass Furnace Working Principle:
Put the fuels, such as rice hull, straw and anthracite into the furnace to burn, then to generate heat. The smoke gets into the heat exchanger and discharges outside after many cycles. At the same time the cold air is heat upt through the heat exchanger outside, then discharges out of the dryer. It can increase the thermal efficiency, save energy and reduce cost greatly.
Our customer case
Our FAQ
Q1: What's your working volts for the rice milling machines?
A: Our machines mainly work on with 380V 50HZ and 3 phases. If have other demands for the working volts, please let us know in advance. We will check and customize for you
Q2: What's your lead and delivery time?
A: Usually machines should be prepared well within 15-20 days, including Sundays when deposit has been confirmed. Delivery time should depend on customers’ demands for the delivery way.
Q3: How is your warranty?
A: Warranty period is 12 (Twelve) months agaist BL date
Q4: How could I do if I meet some troubles on operation?
A:We will let our staffs contact with you to solve it on line. If necessary, we can send engineers and translator to your factory to train your tech staffs.
|
|
