ANHUI CHENYU MECHNICAL CO.LTD
5 Years
| Ask Lasest Price | |
| Brand Name : | ChenYu Technology |
| Model Number : | 5HCY-15H Mixed Type |
| Certification : | ISO9001, ISO14001, CE |
| Supply Ability : | 100 Sets per Month |
| Delivery Time : | 30 Working Days |
1, Using mix type drying method with angle pipe , hot exchange and evaporative way of drying to make sure the drying is evenly and fully;
2, Prevent drying crack broken rice we adopt constant drying speed control, water reduction rate and air temperature controlled by computer, without manual settings;
3, Prevent grain spoiled, machine running under proper temperature ;
4, Prevent excessive drying adopting automatic, accurate and safe water monitoring devices, it can be shut down automatic;
5, Body of tower is low and compact, easy to be installed;
6, High moisture rice and wheat quality also can be dried, widely used for rice, wheat, corn, soybeans and other crops;
7, Safe, reliable, easy to be cleaned;
8, A variety of fuels available, economic, environmentally friendly;
9, Easy to maintain, convenient to use;
10, Excellent quality raw materials for drying tower body, more durable.
Our Key Parameters:
| Model | 5HCY-15H MIX TYPE | ||
| Structure | Batch type circulating | ||
| Drying way | Indirect heating | ||
| Cyclic batch (t) | 15 | ||
Loading capacity | paddy(kg)(apacity＝560kg/m3) | 2300-15000 | |
| wheat(kg)(capacity＝700kg/m3) | 2700-15000 | ||
| Total weight(kg) | 3200 | ||
| diemension(Largest) (L×W×H)mm | 4537*2971*10334 | ||
Ventilation fan | Model | 4-72-6A | |
| rated air flow (m3/h) | 6677-13353 | ||
| Burner(Optional) | Model | husk burner/gas burner/Diesel burner | |
| Ignition | Manual | ||
| fuel | rice hull,firewood,straw,anthracite | ||
| electricity | Voltage/frequence | three phase 380V single phase 220V/50hz | |
| kW motor power | 9 | ||
| function | loading time | paddy(min) | 55-70 |
| wheat(min) | 55-60 | ||
unloading time | paddy(min) | 55-70 | |
| wheat(min) | 55-60 | ||
| drying rate (%/h) | 0.5-1.2 | ||
| device | safety device | Grain temperature sensor, Fault alarm, Full load buzzer,Over0temperature alarm, Thermal-over relay, Hot air temperature sensor, Overload protection device, Leakage protection device | |
| standard device | Online moisture monitor, Conveying system, Unloading system, Drying system, Tempering system, Elevator, Exhaust fan in low noise, Automatic control system | ||
Low Temperature Grain Dryer Working Principle:
Put the grain in the dryer per batch, then the grain will be circulated orderly by the interaction of electric parts and structural parts. The hot air from the husk burner gets into the drying layer to pass through and heat the grain under the action of single electric fan. The air flows draw the moisture out of the grain, then the exhaust gas discharges out of the machine with the suction of the exhaust fan. When the moisture reaches to the preset data, the drying process is over and then machines stop working.

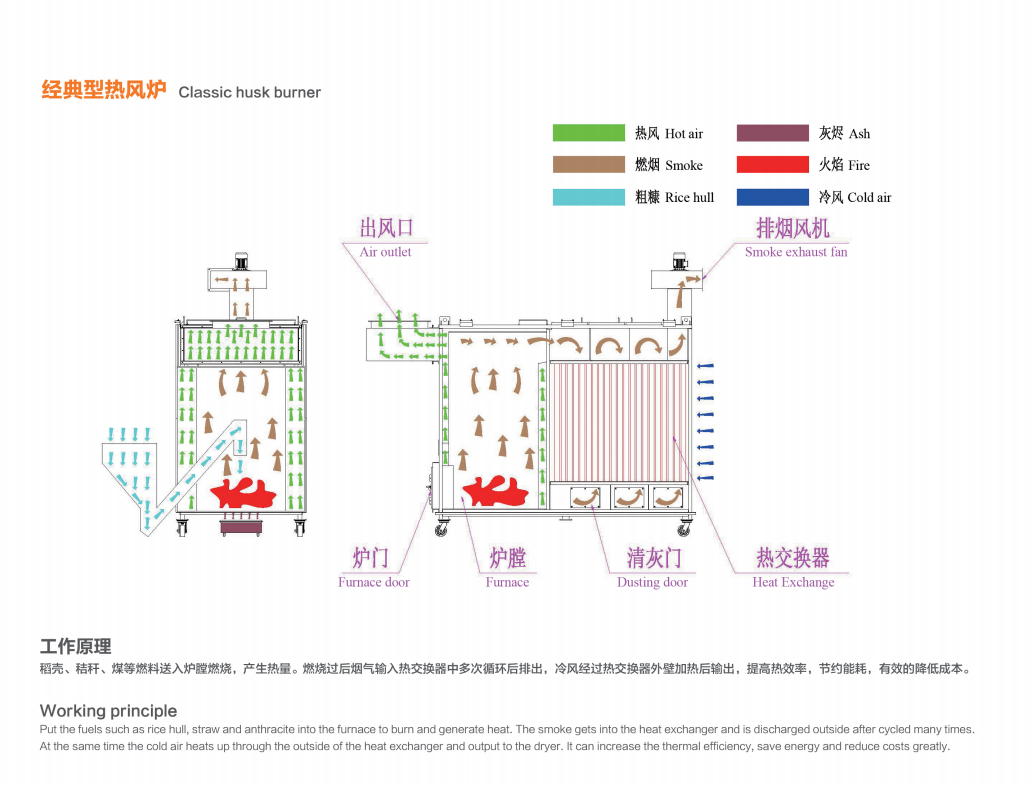

Furnace(Husk burner) Working Principle:
Put the fuels, such as rice hull, straw and anthracite into the furnace to burn, then to generate heat. The smoke gets into the heat exchanger and discharges outside after many cycles. At the same time the cold air is heat upt through the heat exchanger outside, then discharges out of the dryer. It can increase the thermal efficiency, save energy and reduce cost greatly.
Our Key quality control

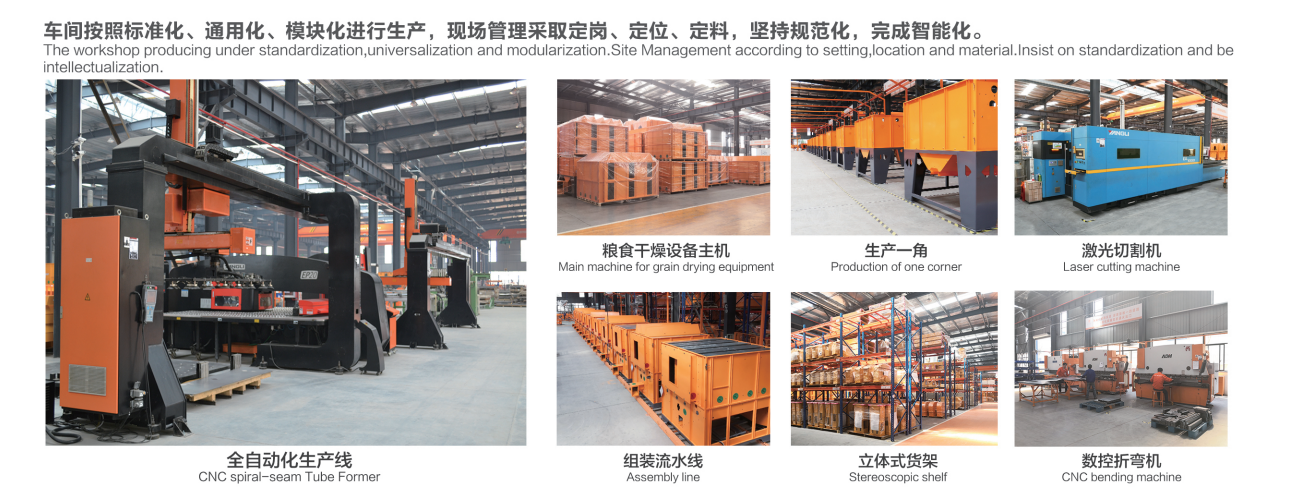

Our Production line
Our FAQ
Q1: What's your working volts for the rice milling machines?
A: Our machines mainly work on with 380V 50HZ and 3 phases. If have other demands for the working volts, please let us know in advance. We will check and customize for you
Q2: What's your lead and delivery time?
A: Usually machines should be prepared well within 15-20 days, including Sundays when deposit has been confirmed. Delivery time should depend on customers’ demands for the delivery way.
Q3: How is your warranty?
A: Warranty period is 12 (Twelve) months from the startup on site.
Q4: How could I do if I meet some troubles on operation?
A:We will let our staffs contact with you to solve it on line. If necessary, we can send engineers and translator to your factory to train your tech staffs.
Our custoemr case
|
|
